RE SERIES不銹鋼平直型規 格 表

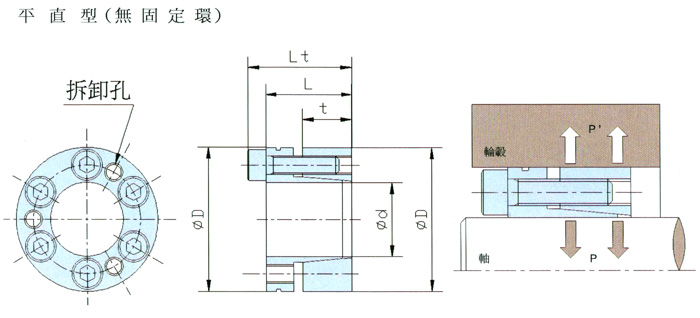

(平直型無固定環)(適用軸公差 : h8 ; 適用輪轂孔公差 : H8 ; 適用表面粗度 : 12S 以下)
規格
外型尺寸
傳達扭力
軸向力
軸側面壓
輪轂側面壓
安裝螺絲
質量
d X D
t
L
Lt
Mt
Pax
P
P'
數
量
規格
懸緊扭力
kg
內徑 X 外徑
N.m
kgf.m
kN
kgf
MPa
kgf/mm2
MPa
kgf/mm2
kgf.m
PL 005 X 018 RE-SS
8
13.5
16.5
6.73
0.69
3.27
334
191
19.5
53
5.4
3
M3X10
0.092
0.02
PL 006 X 019 RE-SS
8
13.5
16.5
9.23
0.94
3.27
334
159
16.3
50
5.1
3
M3X10
0.092
0.02
PL 008 X 021 RE-SS
8
13.5
16.5
18.5
1.9
4.36
445
159
16.3
61
6.2
4
M3X10
0.22
0.03
PL 010 X 026 RE-SS
10
16.5
20.5
41
4.2
7.75
791
181
18.5
70
7.1
4
M4X14
0.22
0.06
PL 011 X 027 RE-SS
10
17
21
45.1
4.6
7.75
791
165
16.8
67
6.9
4
M4X14
0.22
0.06
PL 012 X 028 RE-SS
10
17.5
21.5
61.6
6.3
9.69
989
189
19.3
81
8.3
5
M4X14
0.22
0.06
PL 014 X 030 RE-SS
11
18.5
22.5
86.2
8.8
11.7
1190
177
18
82
8.4
6
M4X14
0.22
0.08
PL 015 X 031 RE-SS
11
18.5
22.5
92.3
9.4
11.7
1190
165
16.8
80
8.1
6
M4X14
0.22
0.08
PL 016 X 032 RE-SS
11
18.5
22.5
98.5
10.1
11.7
1190
155
15.8
77
7.9
6
M4X14
0.22
0.08
PL 017 X 033 RE-SS
12
19.5
23.5
105
10.7
11.7
1190
133
13.6
69
7
6
M4X14
0.22
0.09
PL 018 X 034 RE-SS
12
20
24
111
11.3
11.7
1190
126
12.9
67
6.8
6
M4X14
0.22
0.1
PL 019 X 035 RE-SS
12
20
24
156
15.9
15.5
1580
159
16.2
86
8.8
8
M4X14
0.22
0.11
PL 020 X 039 RE-SS
13.5
23.5
28.5
244
24.9
23
2350
200
20.4
103
10.5
6
M5X20
0.54
0.15
PL 022 X 041 RE-SS
13.5
23.5
28.5
269
27.4
23
2350
182
18.6
98
10
6
M5X20
0.54
0.16
PL 024 X 043 RE-SS
15
26
31
391
39.9
30.8
3140
200
20.4
112
11.4
8
M5X20
0.54
0.19
PL 025 X 044 RE-SS
15
26
31
407
41.6
30.8
3140
192
19.6
109
11.1
8
M5X20
0.54
0.2
PL 028 X 049 RE-SS
16.5
28.5
33.5
570
58.6
38.4
3920
195
19.6
111
11.4
10
M5X20
0.54
0.27
PL 030 X 050 RE-SS
16.5
28.5
33.5
611
62.3
38.4
3920
182
18.6
109
11.1
10
M5X20
0.54
0.26
PL 032 X 052 RE-SS
17
29
34
652
66.5
38.4
3920
165
16.9
102
10.4
10
M5X20
0.54
0.28
PL 035 X 058 RE-SS
17
29
34
855
87.5
46.2
4710
182
18.5
110
11.2
12
M5X20
0.54
0.38
PL 038 X 060 RE-SS
18
31.5
37.5
1100
112
54.5
5560
187
19
118
12.1
10
M6X25
0.92
0.39
PL 040 X 063 RE-SS
18
31.5
37.5
1150
118
54.5
5560
177
18.1
113
11.5
10
M6X25
0.92
0.43
PL 042 X 066 RE-SS
19
34
40
1450
148
65.4
6670
192
19.6
122
12.5
12
M6X25
0.92
0.5
PL 045 X 068 RE-SS
19
34
40
1560
159
65.4
6670
179
18.3
119
12.1
12
M6X25
0.92
0.5
PL 048 X 072 RE-SS
19
34
40
1660
170
65.4
6670
168
17.1
112
11.4
12
M6X25
0.92
0.57
PL 050 X 075 RE-SS
19
35.5
41.5
2020
206
76.3
7790
188
19.2
125
12.8
14
M6X25
0.92
0.62
